- Steel case, powder coated finish; Case Depth 75mm; Backset 50mm.
- Bolts: 2 nickel plated steel bar bolts with an extruded brass section bolt with hardened high carbon steel alloy pins; Bolt Length 19mm.
- Striker Plate: Steel plate, nickel plated finish.
- Latch: Extruded brass section
- Cram: Steel cram nickel plated finish.
- Pin cylinder: High security euro profile pin cylinder with choice of 3 or 5 nickel plated keys, available in 65, 70 & 75mm lengths.
- Handle: Extruded and sheet drawn components in brass, mild steel & zinc. Center 62mm
- Finishes: Brush brass, Brush steel, Brass antique, Silver, gold, etc.; protected by electrophoretic lacquer coating/ plating.

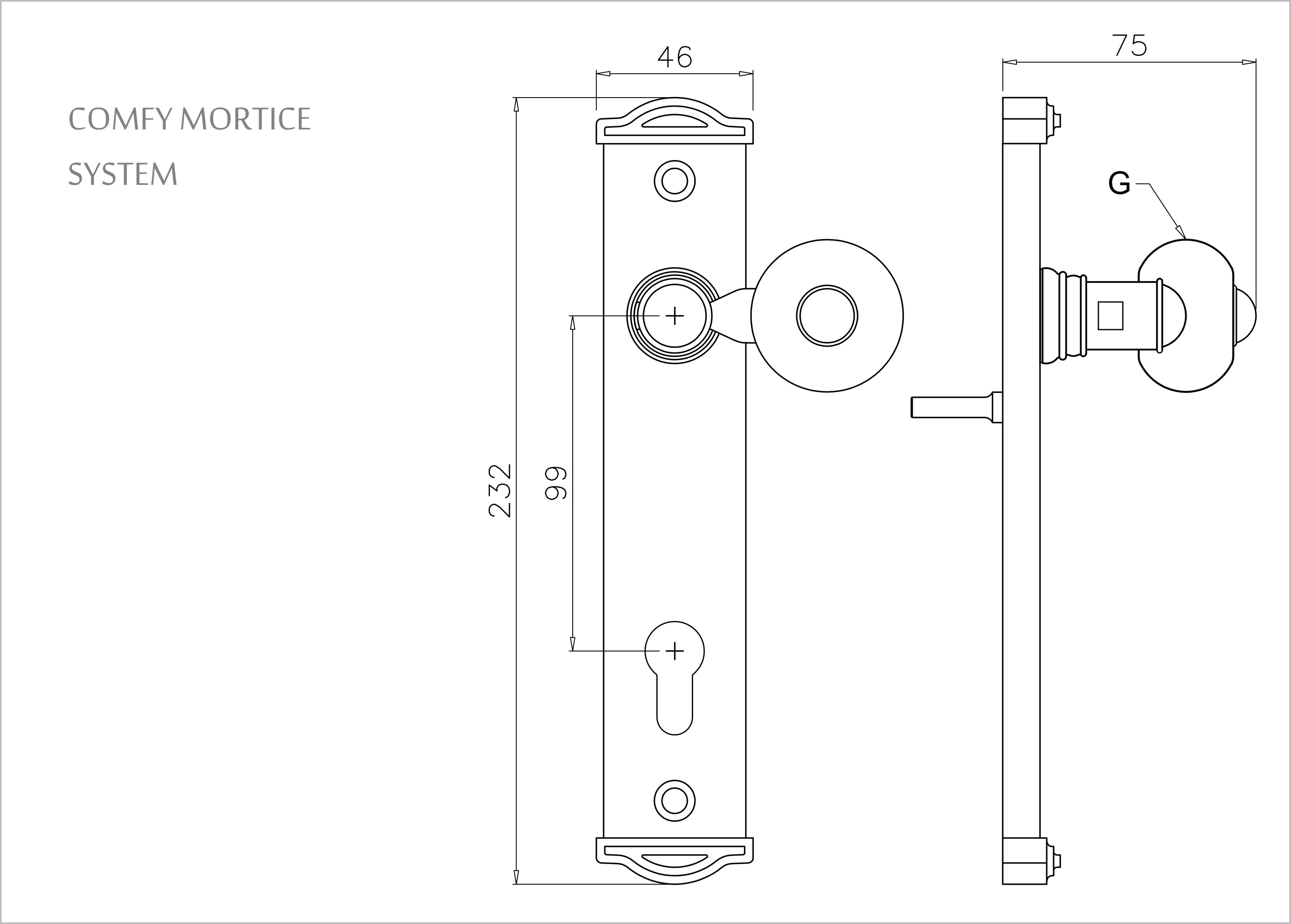

Line Diagram :
