Product Code : 1.00
- Case: Steel case, powder coated finish; Case Depth 85mm; Backset 57mm.
- Bolts: 2 nickel plated steel bar bolts with an extruded brass section bolt with hardened high carbon steel alloy pins ; Bolt Length 20mm.
- Striker Plate: Steel plate, nickel plated finish.
- Latch: Extruded brass section with stainless steel roler.
- Cram: Extruded brass section, electrophoretically lacquered/ nickel plated finish.
- Pin cylinder: High security euro profile pin cylinder with choice of 3 or 5 nickel plated keys. Pin cylinder available in 65, 70 & 75mm lengths.
- Handle Plate: Forged & turned brass.
- Finishes: Brush brass, Brush steel, Brass antique, Silver gold, etc., Protected by electrophoretic lacquer coating/ plating.

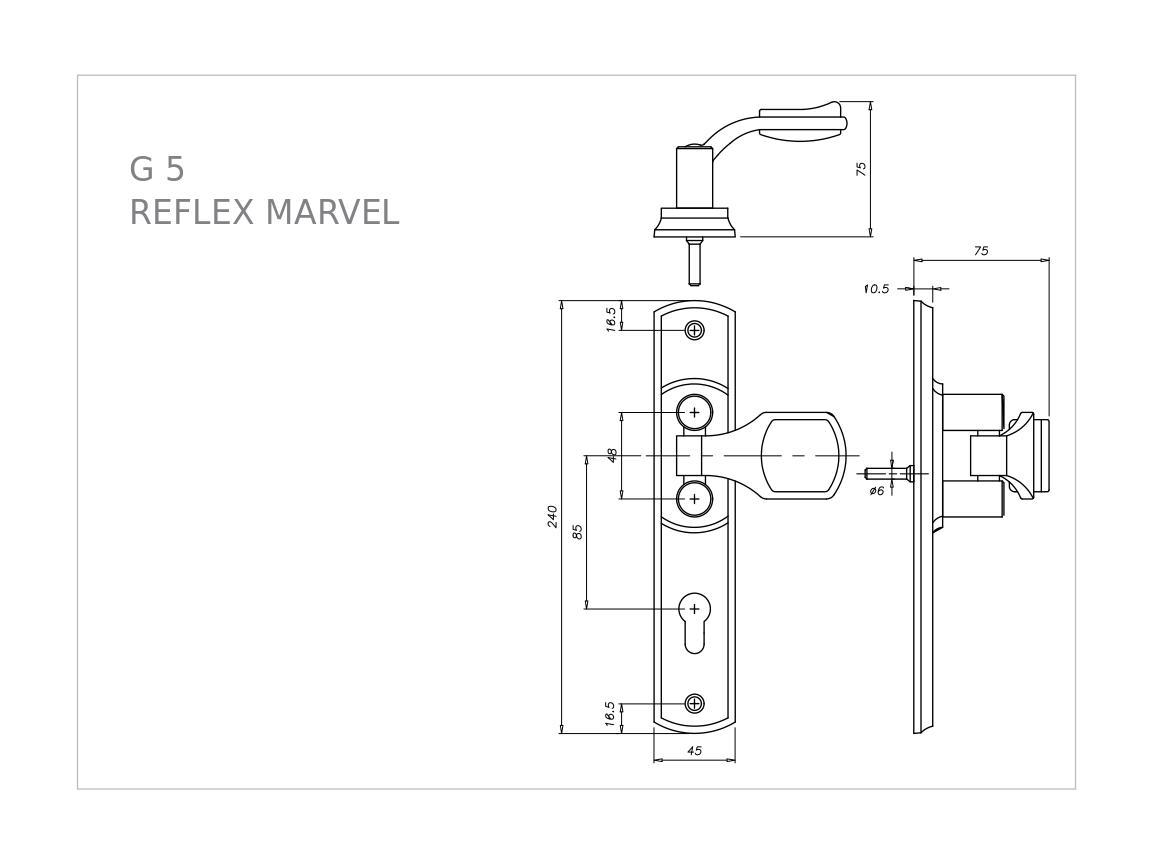

Line Diagram :
