- Case: Steel case, powder coated/ nickel plated finish, Case Length 45 mm; Backset 22 mm.
- Bolt: Extruded brass section; Bolt Length 17 mm.
- Striking Plate: Steel plate, nickel plated finish; Available for both single and double doors.
- Pin Cylinder: Brass Pin Cylinder, with high-security 6 pin mechanism. Standard cylinder length 24 mm; Also available with 32 mm cylinder length.
- Keys: Brass keys, nickel plated finish.
- Locking Face Plate: Brass/ Steel plate, lacquered/ nickel plated finish.

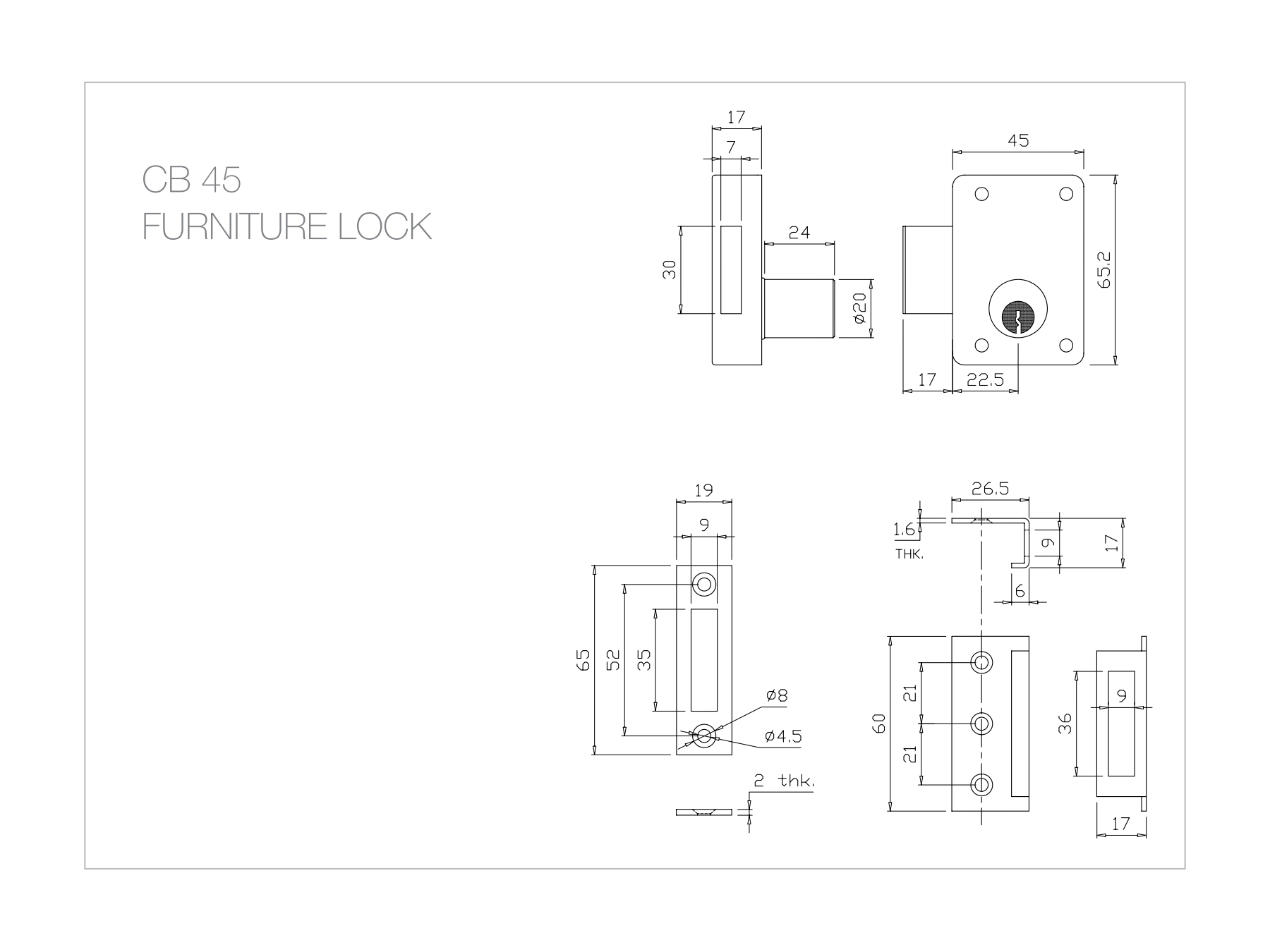

Line Diagram :
